Dialface ID 56
Page 1 of 3
Abstract

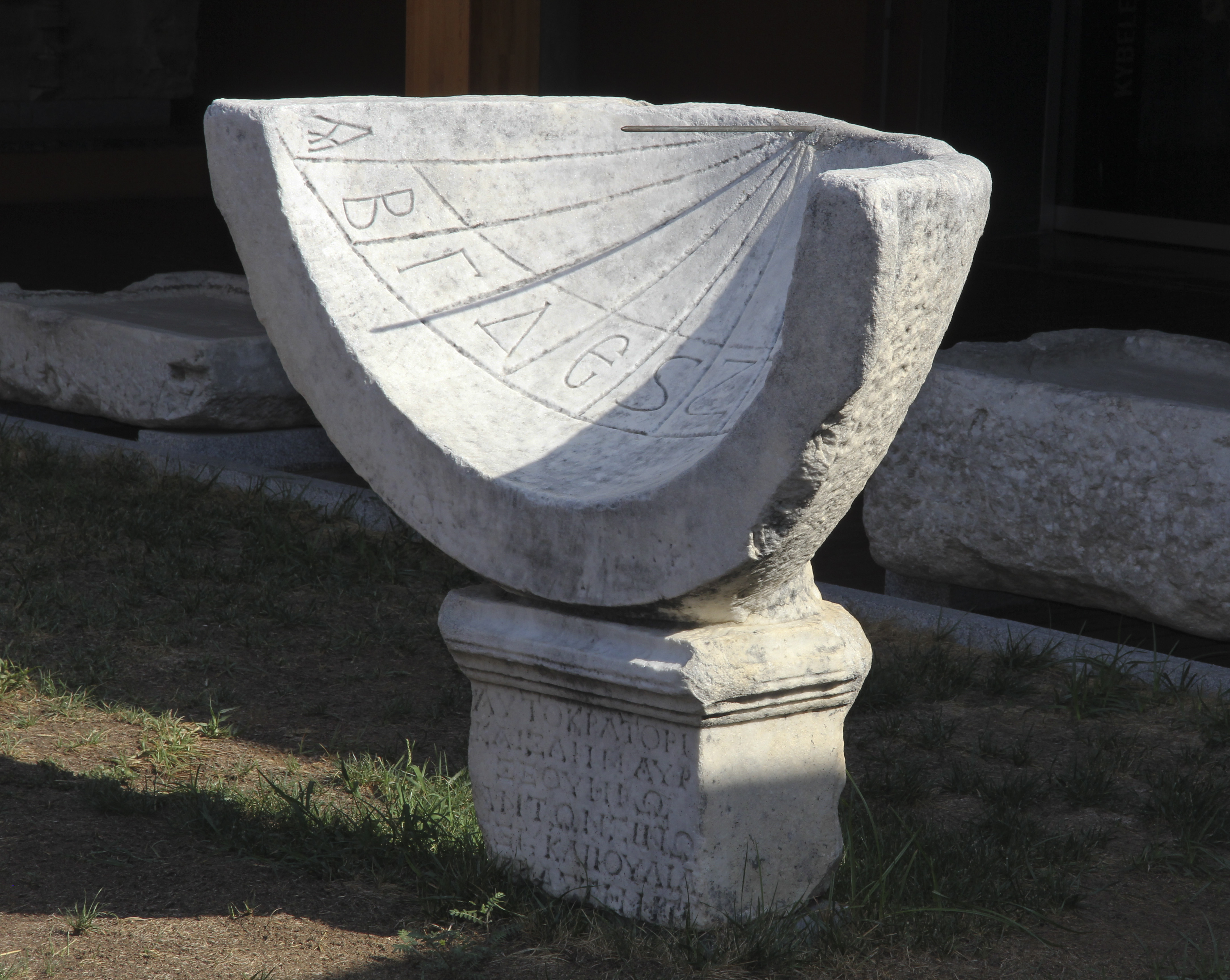

The present gnomon is not original, and museum restoration has destroyed any trace of the original gnomon hole. [...] The dial is dedicated to the Emperor Caracalla (Marcus Aurelius Severus Antonius) and his mother Julia Domna. Gatty says the dial was found at Aphrodisias before 1877.
Measurements
Measurement record: pipeline ObjID 59, matched to this dialface by inventory number.
| Quality grade | B (completeness 27 %) |
|---|---|
| Dial surface | sphere (decisive) · fit residual mm: cone 10.83, cylinder 12.20, sphere 4.58 |
| Latitude φ | no latitude determined |
| Engraved lines | 11 hour lines, 2 day lines |
| Cone half-angle α | not shown: surface fit decisively sphere: cone-specific quantities do not apply |
| Measured | 2026-06-12 20:58 |
References
- – Scott Gatty, Margaret, The Book of Sun-dials, London, 1900, p. 32.
- – Gibbs, Sharon L., Greek and Roman Sundials, New Haven and London, 1976, p. 168, p. 169.
- – Miltner, Franz, Vorlaeufiger Bericht ueber die Ausgrabungen in Ephesos, 1955, Beiblatt, Columns 56-58, fig. 20.
- – Winter, Eva, Zeitzeichen. Zur Entwicklung und Verwendung antiker Zeitmesser, Berlin and Boston, 2013, p. 268f.

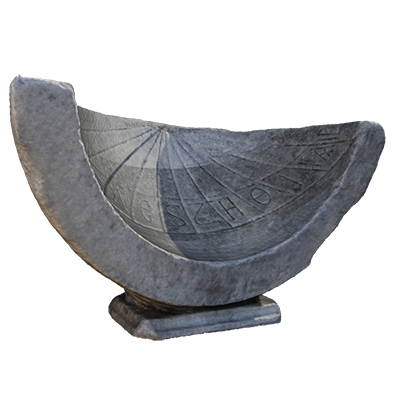

3D Models
