Dialface ID 541

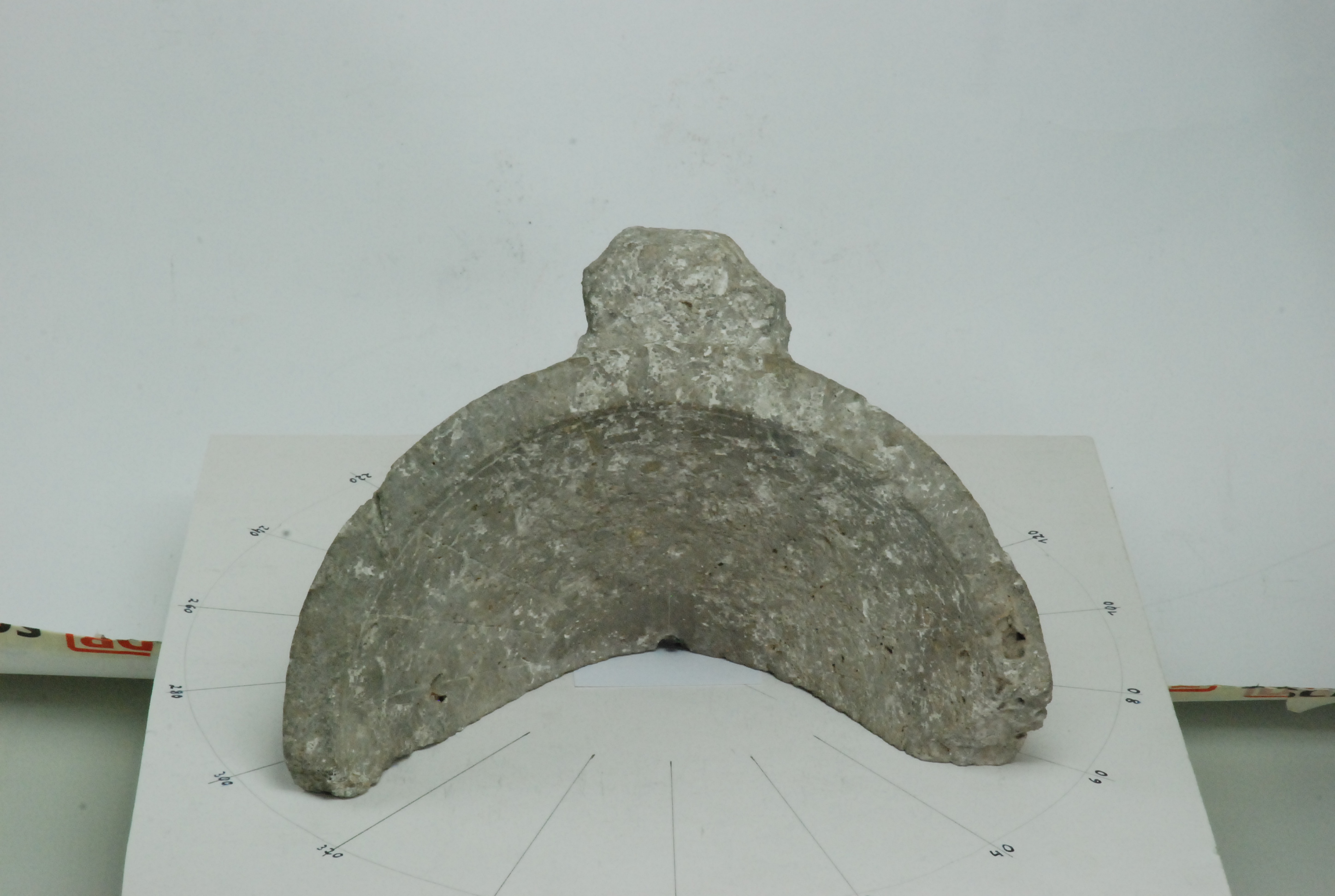

ObjID497-1

ObjID497-1

Holder:
Staatliche Kunstsammlungen Dresden, Dresden, Germany
Site:
Unknown, Unknown
Material:
Unknown
Dating:
unknown
Type:
Cone, Conical
Inventory Number:
ZV 2600 B 205
Page 1 of 2

Abstract

Information on the Dialface ID 541 / Object ID 497

Measurements

Measurement record: pipeline ObjID 497, matched to this dialface by inventory number.

Quality gradeB (completeness 32 %)
Dial surfacecone (decisive) · fit residual mm: cone 0.45, cylinder 17.68, sphere 4.98
Latitude φno latitude determined
Engraved lines7 hour lines, 2 day lines
Cone half-angle α41.1 ± 2.18° (cone residual on all points 0.47 mm)
Measured2026-06-12 20:49

Open the line-detection viewer for this object

References

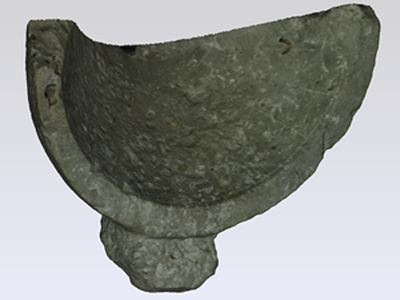

3D Models

3D Point Selections

showing 1 - 5 of 13 items

BackBack
DialfaceDialface

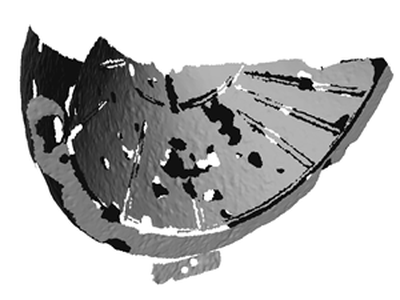

Day Curve SummerDay Curve Summer
Day Curve WinterDay Curve Winter
Hour Line1Hour Line1

DOI

10.17171/1-1-4189

Citation

Berlin Sundial Collaboration, Ancient Sundials, Dialface ID 541, Dresden, Inv. Nr. ZV 2600 B 205, 2014, Edition Topoi, DOI: 10.17171/1-1-4189
