Dialface ID 167
Page 1 of 3
Abstract
A 103 mm long bronze gnomon (16 mm wide at the base and tapering to a point) is in position at the top of the dial. No lead fill is visible. No day curves cross the eleven deeply engraved hour lines. Two lines, always 35 mm distant from each other, engraved in the oblique front surface of the dial emphasize the lower edge of the shadow-receiving surface. Two legs with curving profiles flank the base. Severino: Nella visita di Gibbs nell'estate del 1971, questa meridiana era conservata ancora nei Granai dove fu vista e fotografata dall'autrice.
Measurements
Measurement record: pipeline ObjID 168, matched to this dialface by inventory number.
| Quality grade | B (completeness 12 %) |
|---|---|
| Dial surface | cone (decisive) · fit residual mm: cone 0.98, cylinder 2.71, sphere 5.62 |
| Latitude φ | no latitude determined |

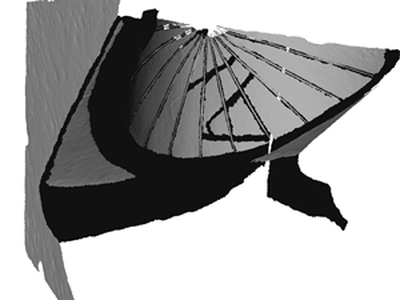

| Engraved lines | 11 hour lines, 0 day lines |
| Cone half-angle α | not applicable or not determined |
| Measured | 2026-06-12 21:03 |
References
- – Gibbs, Sharon L., Greek and Roman Sundials, New Haven and London, 1976, p. 287, p. 288, plate 44.
- – Severino, Nicola, De Monumentis Gnomonicis apud graecos et romanos. Le meridiane greco-romane. La storia, il catalogo, gli articoli, Roccasecca, 2003, p.27.

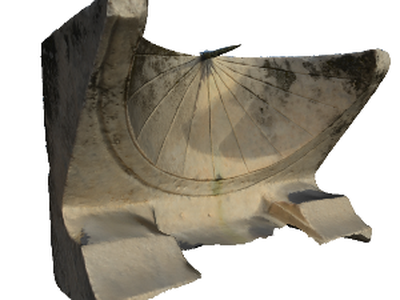

3D Models
